12 kg
7.6 kg
12 Litres
- Solution overview
- System Specifications
- Evaluation Criteria
- Documentation
Solution overview

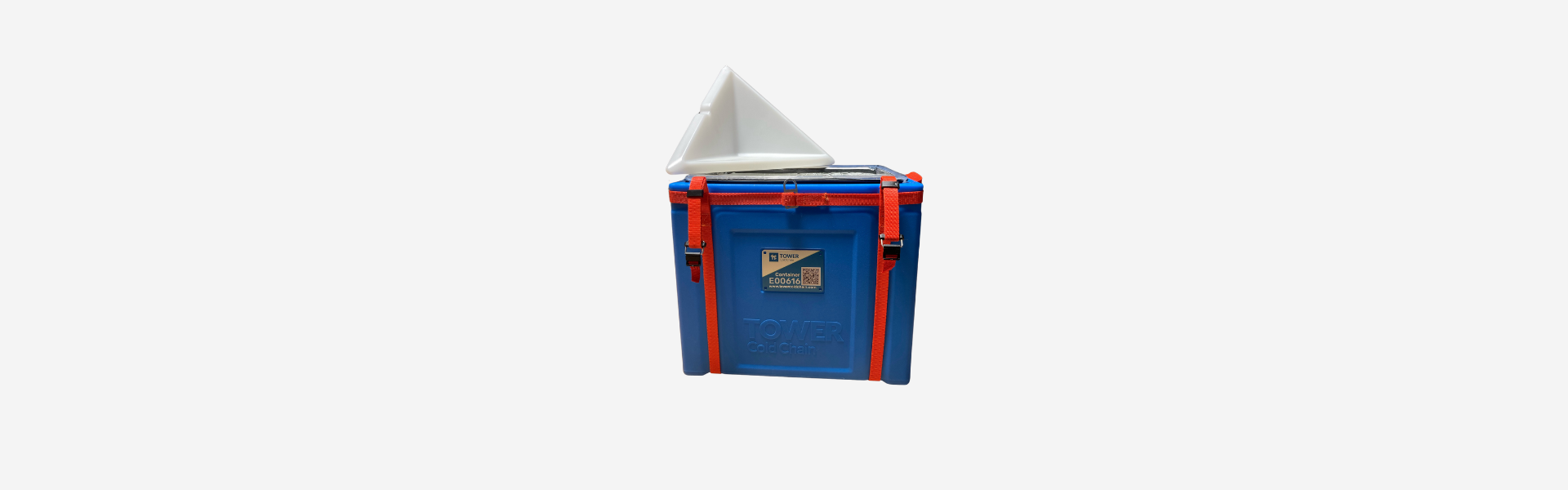

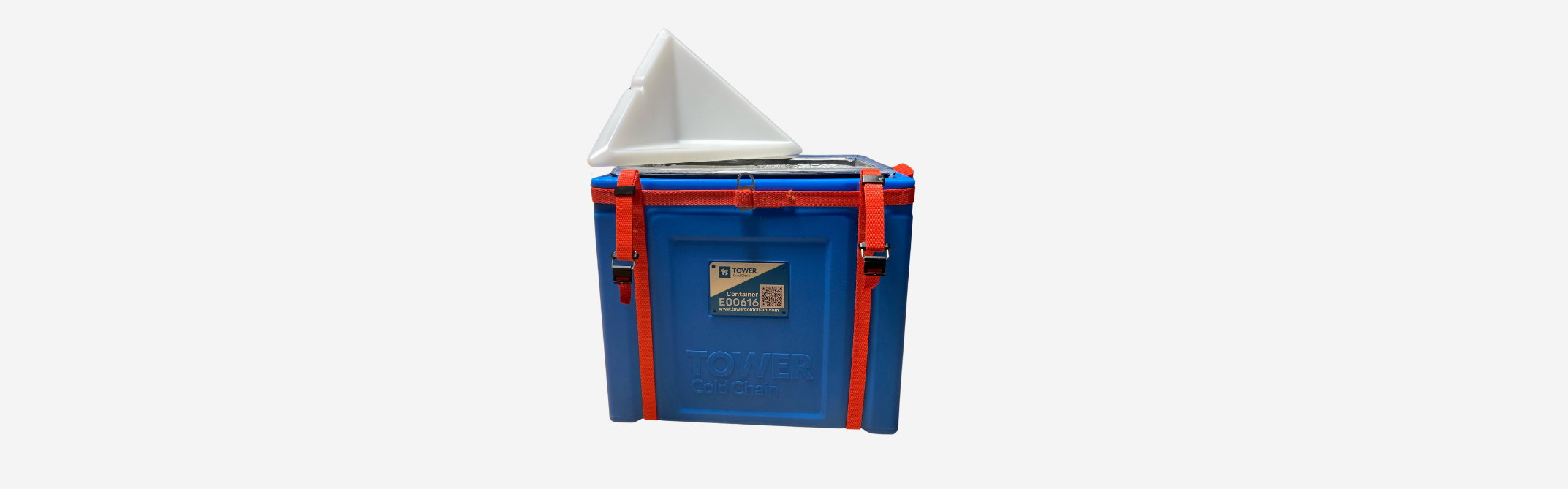

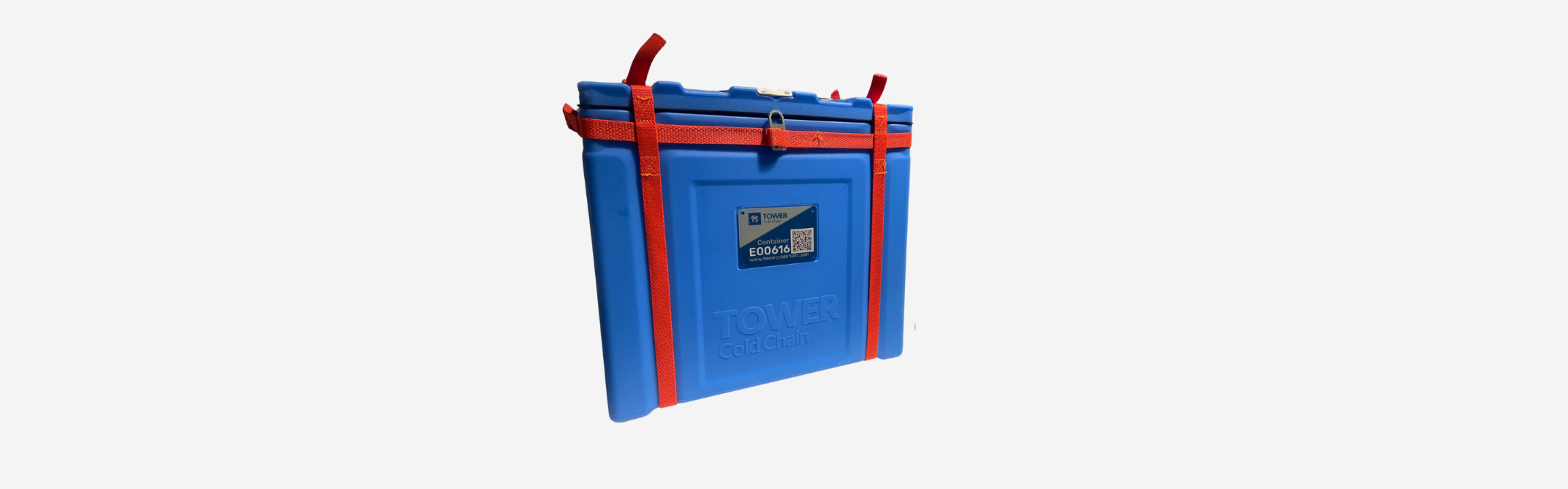

The KTEvolution 12 is a revolutionary small, portable, weatherproof and washable ‘small box’ solution to your shipping needs, ensuring longer lifespan, reduced ownership costs, and minimal maintenance expenses.
Engineered to excel in all temperature ranges, our lightweight design guarantees reliable performance, lasting over 96 hours, even under the most demanding conditions using phase changing technology and vacuum insulating panels.
Tested to ISTA7D summer and winter methodologies, the KTEvolution 12 is the ideal choice for handling unanticipated shipping delays with ease. With a robust outer made of composite it is designed for longevity and to protect your products while in transit. Optimised for integrator networks and wholesaler operations, our fully reusable thermal packaging solution ensures high efficiency and minimal CO₂ emissions, making it environmentally friendly.
Designed specifically for last-mile delivery, lab distribution and clinical trials, the KTEvolution 12 enables the safe transport of temperature-sensitive goods, including high-value commercial, clinical trials, and research & development shipments.
The KTEvolution 12 provides unmatched performance, offering 20-30% thermal performance increase over semi-reusable solutions.
Our unique patent-pending PCM pyramid plate system ensures superior product protection and thermal performance, with improved temperature homogeneity across the product.Designed for ease of handling and maintenance, the KTEvolution 12 is equipped with IoT capabilities for real-time data logging and GPS live tracking, providing customers with full visibility and control over their shipments.
The KTEvolution 12 offers unparalleled customisation advantages, ensuring tailored solutions for your specific needs. From personalised branding to adjustable temperature ranges and IoT integration, the KTEvolution 12 can be tailored to meet the unique requirements of your shipments, providing maximum flexibility and efficiency for your business.
Available to purchase
System Specifications
| System | Temp Range | External Dimensions | Internal Dimensions | Tare Weight |
|---|---|---|---|---|
| KTEvolution12T | +15°C to +25°C | L 400mm x W 300mm x H 380mm | L 290mm x W 190mm x H 220mm | 15kg |
| KTEvolution12R | +2°C to +8°C | L 400mm x W 300mm x H 380mm | L 290mm x W 190mm x H 220mm | 12.5kg |
| KTEvolution12F | -25°C to -15°C | L 400mm x W 300mm x H 380mm | L 290mm x W 190mm x H 220mm | 14kg |
| KTEvolution12D_80 | <-60°C | L 400mm x W 300mm x H 380mm | L 290mm x W 190mm x H 220mm | 13.5kg |
| KTEvolution12D_100 | <-60°C | L 400mm x W 300mm x H 380mm | L 287mm x W 187mm x H 192mm | 15kg |
Evaluation Criteria
• Small, portable, weatherproof and washable
• Fully tailored and adaptable to your temperature, weight and duration needs
• Unparalleled customisation: personalised branding to adjustable temperature ranges and IoT integration
• One KTEvolution 12 is capable of providing <-60°C (ultracold), -20°C (frozen), +5°C (refrigerated) and +20°C (ambient temperature) internal temperature ranges for 96+ hours using dry ice or phase changing technology
• 20-30% reliable thermal performance increase over semi-reusable solutions
• Suitable for International or domestic shipments
• A new addition to our reliable range of pharmaceutical containers. Data downloaded from over 30,000 shipments demonstrated fewer than 0.1% temperature excursions on average
• Easy load and unload process
• No external power or human intervention required during transportation
• Additional security features including physical tamper evidence and lockable options
• Equipped with IoT capabilities for real-time data logging and GPS live tracking, providing customers with full visibility and control over their shipments
• Unique patent-pending PCM pyramid plate system ensuring superior product protection and thermal performance, with improved temperature homogeneity across the product
• Euro tote base size allowing easy automation and easy palletisation
• One piece inner and fully sealed unit to ensure easy cleaning, minimal biological contamination, reduced moisture and humidity ingress
• Tested to ISTA7D summer and winter methodologies
• Longer lifespan, reduced ownership costs, and minimal maintenance expenses
• Optimised for integrator networks and wholesaler operations
• Quality Assured: Thermal performance of every container individually checked and recorded (R value and total heat flux W/°K)
• Certificate of performance for every container
• Easy and quick reconfigure for subsequent shipments
• Global availability through our center of excellence within 24 hours or less
• Superior product protection from the composite construction and foam cushioning in all corners on base of the unit ASTM4169 assurance level 1 transit tested
Documentation
KTEvolution 12
The KTEvolution 12 is ideally suited for the transportation of:
Life Science Products:
- All vaccines, including C19 vaccines and ABIs
- API & diagnostic kits
- Biopharmaceutical solutions
- Diagnostics specimen samples
- Cell lines bacteria
- Micro organisms
- Proteins and other samples and solutions
- Clinical trial kits
- Any other product requiring a stable temperature environment for transportation
Designed specifically for direct to patient clinical trial, last-mile delivery and lab distribution, the KTEvolution 12 enables the safe transport of temperature-sensitive goods, including high-value commercial, clinical trials, and research & development shipments.
Data loggers are built into all Tower KTEvolution 26 hand held containers, logging internal temperatures from -95°C (-139°F) up to 50°C (122°F). Users can get text or email notification of temperature excursions, as well as automatic data downloads throughout the transit (in-flight excluded) from loggers within range of the CX Gateway device. The loggers are built to FDA, USP, EU and WHO standards.
Tower KTEvolution 26 hand held containers are designed to be used all year round to all destinations using one packaging instruction – avoiding extra levels of complication and uncertainty within either validation or operational control.
Tower’s global network operates common processes and standards delivering consistency for customers. The network offers customers access to the complete range of Tower’s products with a local team of experts available to understand specific customer needs: this ensures that Tower delivers, where and when needed.
Tower cold chain recognise the role we play in working with our stakeholders to move from a linear supply chain to a circular one – providing a solution that supports our mutual ambition of waste reduction through reusability keeping our containers in use for longer reducing the need for disposal and recycling of temperature controlled packaging.
